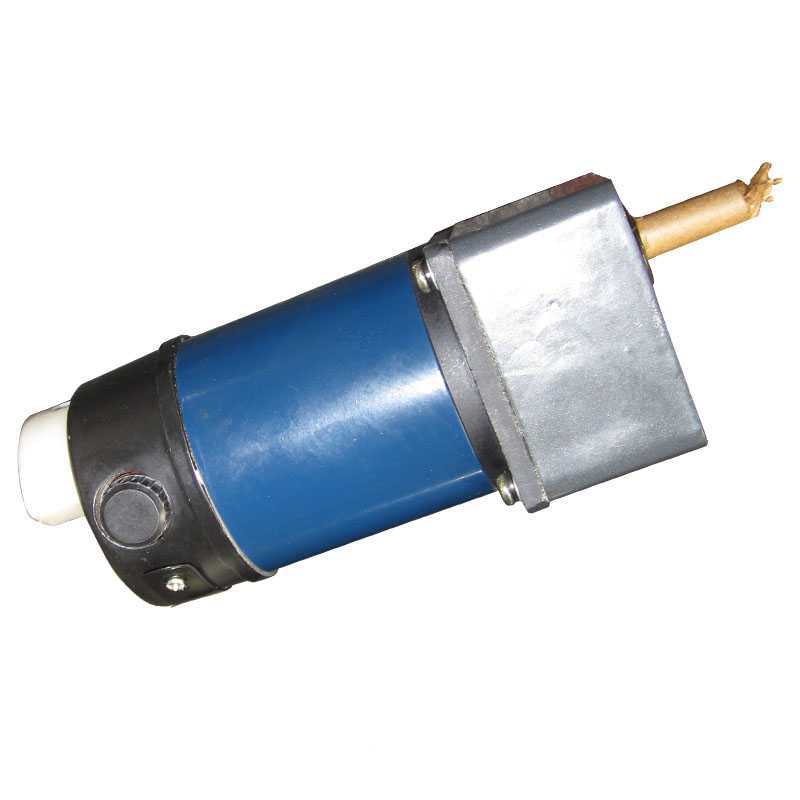

High Torque DC gearmotor with square reducer

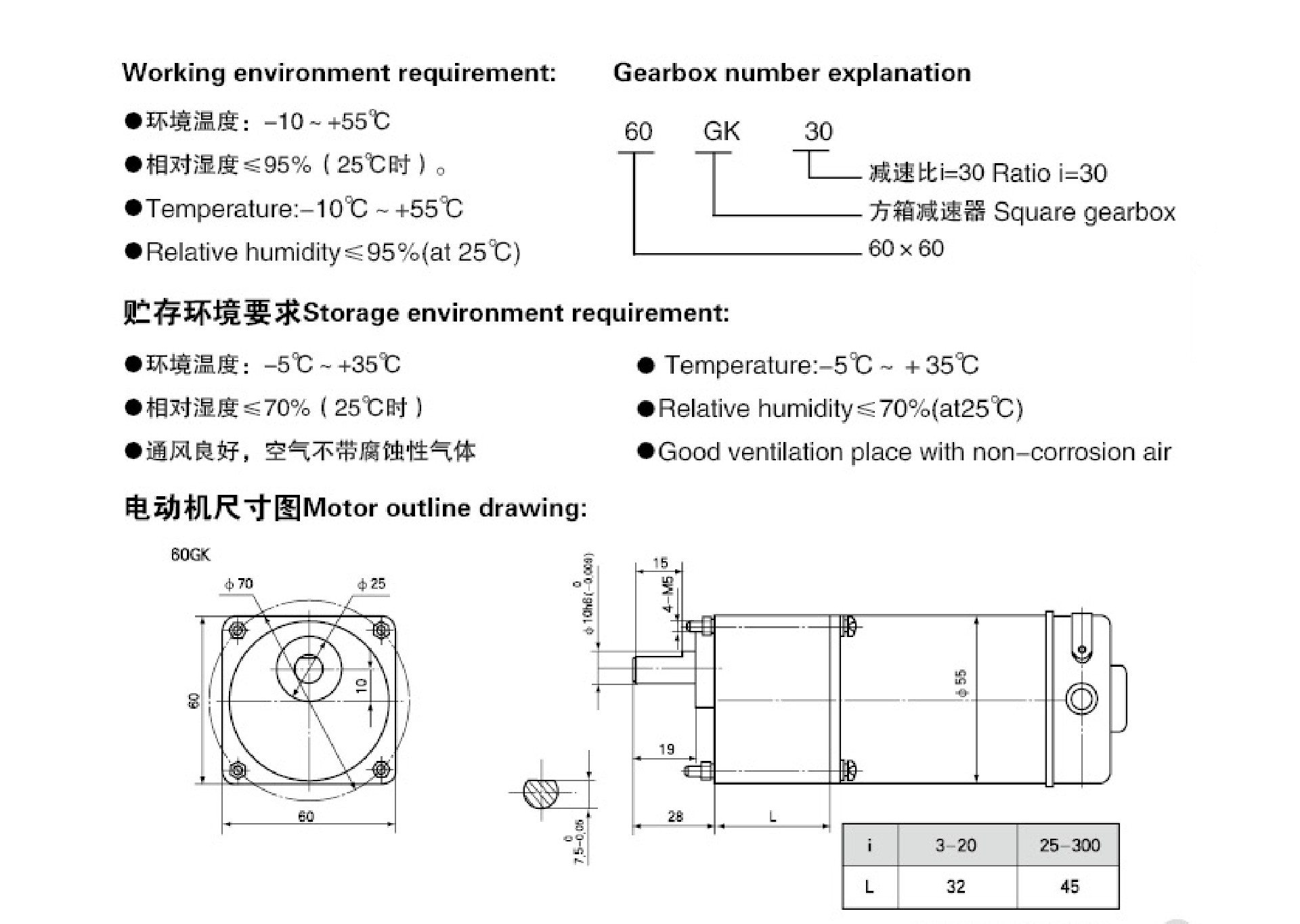

This series gearmotor with square reducer consists of seires GK square reducer and every senes of DC motor.it
with square reducer is manufactured by high precision machining equipment and perfect process combined with,with the
characteristics of low noise and smooth running. Ratio 3-300,and may fit with different power motors,so it can obtain ideal
output torque.
This series products is used with the continuous running machine,eg,production line,auto lathe,printing machine,also
used with the situation of the frequent ON/OFF or reversing direction,eg,auto selling machine,package machine, Voltage
adjustor,electric lifting machine,etc.
- Information
- Video
- Downloads
The mechanical structure is compact, with a lightweight and small form factor, making it highly efficient.
It has excellent heat exchange performance and rapid heat dissipation.
It is easy to install, flexible, lightweight, and offers superior performance, making it easy to maintain and service.
It operates smoothly, produces minimal noise, and is durable.
It is versatile, highly reliable, and safe.
Currently, it has been widely used in various industries for mechanical reduction devices in production processes. It has received positive feedback from users and is the optimal choice for modern industrial equipment that requires high torque, large speed ratios, low noise, and high-stability mechanical reduction transmission control devices.
This series of motors operates smoothly with low noise, high transmission speed ratio, and strong carrying capacity. They can be matched with various types of motors to achieve speed regulation and drive control.
We make Customizable voltage, dimension, performance, shaft, mounting...etc
We make integrated encoder, gearbox, brake...etc
Please Send Inquiry or Question, and We will get you the Best and Most Cost Effective Solution/Proposal.
OPTIONS:
Size: 32mm 36mm 38mm 42mm 52mm 57mm 60mm 63mm 70mm 76mm 80mm 90mm 110mm
Rated voltage : 10v 12v 18v 24v 36v 48v upto 380vdc
Rated torque : upto 3Nm (calculated without gearbox)
Rated speed: upto 15000rpm
Rated power: upto 1000w
Protection class IP 40 50 54 56 66 67 Option
BELOW ARE ONLY TYPICAL MODELS, PLS CONTACT US FOR CUSTOMIZED MOTORS
These are standard shafts of our company above. The diameter of the output shaft can be 6mm, 8mm, 10mm, 12mm, 14mm and so on.We can design and manufacture the shafts according to your demand.
The parameters of the motor above are for your reference.We can design and manufacture according to your required like voltage, power,speed,torque and dimensions.
| Type | Torque | Speed | Power | Voltage | Current(A) | CW/CCW |
| (mN.m) | (r/min) | (w) | (v) | < | speed tolerance(r/min) | |
| 110ZYT01 | 784 | 1500 | 123 | 110 | 1.8 | 100 |
| 110ZYT02 | 784 | 1500 | 123 | 220 | 0.9 | 100 |
| 110ZYT03 | 637 | 3000 | 200 | 110 | 2.8 | 200 |
| 110ZYT04 | 637 | 3000 | 200 | 220 | 1.4 | 200 |
| 110ZYT05 | 637 | 3000 | 200 | 24 | 13 | 200 |
| 110ZYT51 | 1177 | 1500 | 185 | 110 | 2.5 | 100 |
| 110ZYT52 | 1177 | 1500 | 185 | 220 | 1.25 | 100 |
| 110ZYT53 | 980 | 3000 | 308 | 110 | 4 | 200 |
| 110ZYT54 | 980 | 3000 | 308 | 220 | 2 | 200 |
| 110ZYT55 | 980 | 3000 | 308 | 24 | 16.5 | 200 |
| Type | Torque | Speed | Power | Voltage | Current(A) | CW/CCW |
| (mN.m) | (r/min) | (w) | (v) | < | speed tolerance(r/min) | |
| 110ZYT101 | 1560 | 1500 | 245 | 110 | 3 | 100 |
| 110ZYT102 | 1560 | 1500 | 245 | 220 | 1.5 | 100 |
| 110ZYT103 | 1274 | 3000 | 400 | 110 | 4.8 | 200 |
| 110ZYT104 | 1274 | 3000 | 400 | 220 | 2.4 | 200 |
| 110ZYT105 | 1274 | 3000 | 400 | 24 | 22.5 | 200 |
| 110ZYT151 | 2390 | 1500 | 375 | 110 | 4.5 | 100 |
| 110ZYT152 | 2390 | 1500 | 375 | 220 | 2.3 | 100 |
| 110ZYT153 | 2230 | 3000 | 700 | 110 | 8.5 | 200 |
| 110ZYT154 | 2230 | 3000 | 700 | 220 | 4.2 | 200 |
| 110ZYT155 | 2230 | 3000 | 700 | 24 | 45 | 200 |
