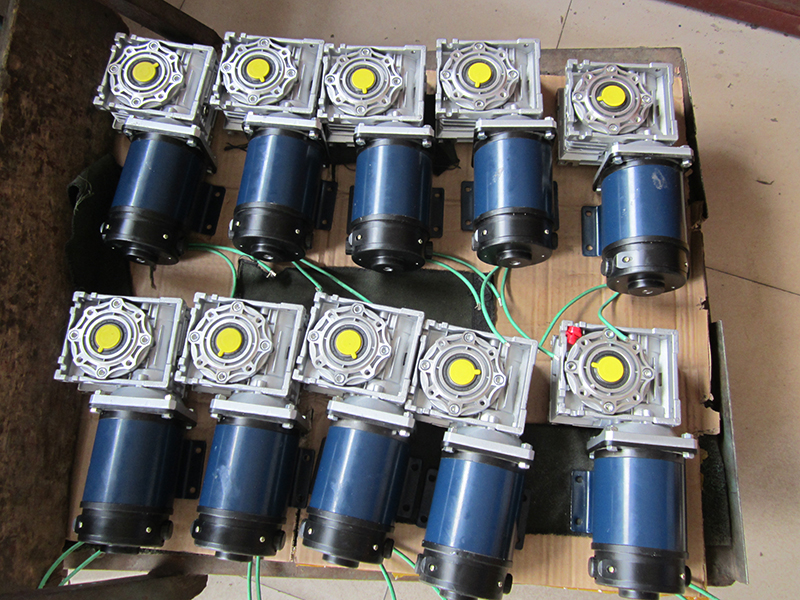

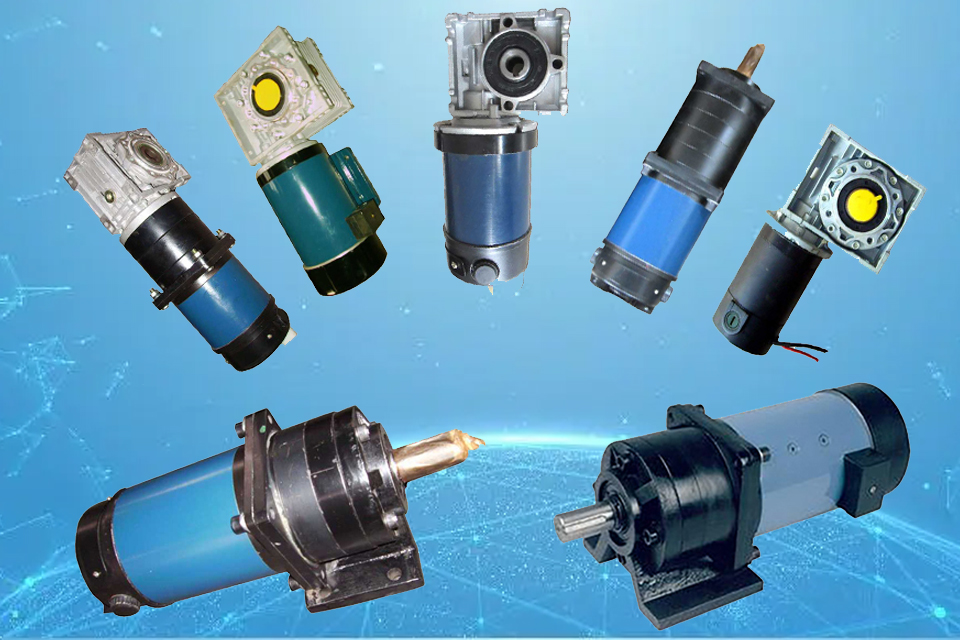

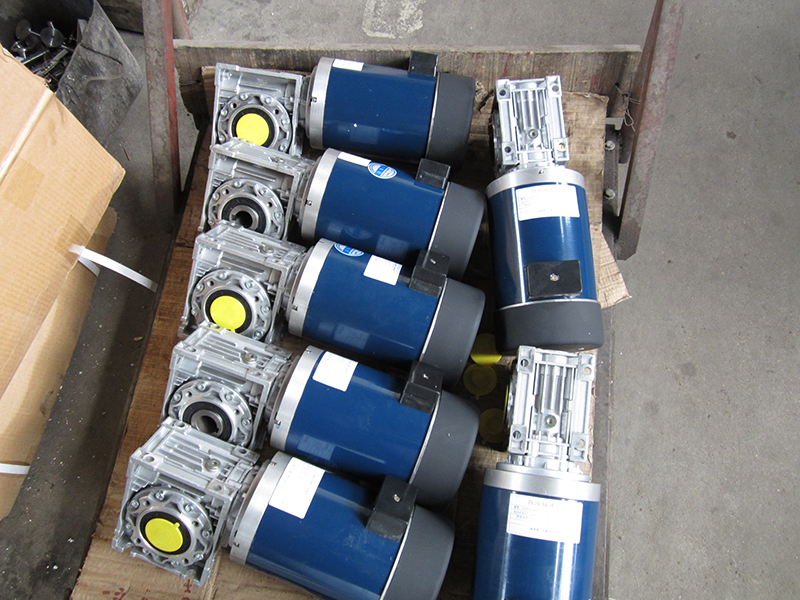

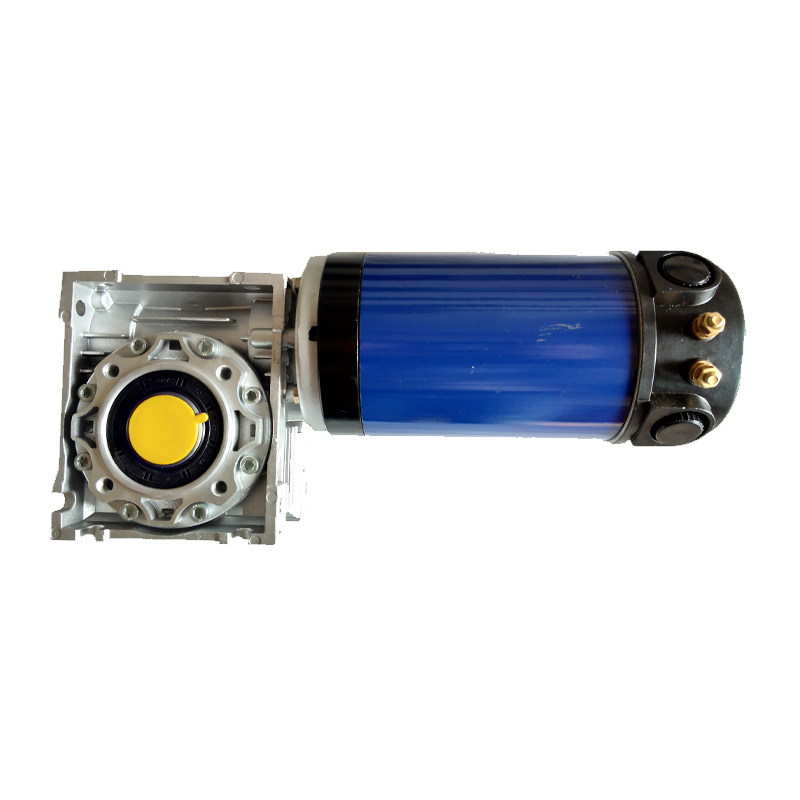

PMDC motor with Worm Gearbox NMRV Speed Reducer
Features:
1. Motor type: Brushed DC motor
2 .Gearbox: Worm gearbox, planetary reducer
3. Voltage: 24v- 220v
4. Speed:20rpm-500rpm
5. Type: 70ZYT, 80ZYT, 90ZYT, 110ZYT
6. Worm gear box: RV030, RV040, RV050, RV063, RV075, NMRVgear reducer
7. Typical application: Brushed motors are widely used in various industrial and commercial applications due to their simple design, low cost, and ease of maintenance. They are suitable for applications that require low to medium power output and low to medium speed operation.
- Information
- Video
- Downloads
NMRV series worm gear motors are composed of a worm gear reducer and various motors, including three-phase AC, single-phase AC, DC servo, and permanent magnet DC motors, among others. The product absorbs advanced domestic and foreign technologies based on the parameters of cylindrical worm gears specified by GB10085-88. It features a square-shaped aluminum alloy housing with a rational structure, pleasing appearance, good heat dissipation performance, and easy maintenance.
This series of motors operates smoothly with low noise, high transmission speed ratio, and strong carrying capacity. They can be matched with various types of motors to achieve speed regulation and drive control.
We make Customizable voltage, dimension, performance, shaft, mounting...etc
We make integrated encoder, gearbox, brake...etc
Please Send Inquiry or Question, and We will get you the Best and Most Cost Effective Solution/Proposal.
OPTIONS:
Size: 32mm 36mm 38mm 42mm 52mm 57mm 60mm 63mm 70mm 76mm 80mm 90mm 110mm
Rated voltage : 10v 12v 18v 24v 36v 48v upto 380vdc
Rated torque : upto 3Nm (calculated without gearbox)
Rated speed: upto 15000rpm
Rated power: upto 1000w
Protection class IP 40 50 54 56 66 67 Option
BELOW ARE ONLY TYPICAL MODELS, PLS CONTACT US FOR CUSTOMIZED MOTORS
These are standard shafts of our company above. The diameter of the output shaft can be 6mm, 8mm, 10mm, 12mm, 14mm and so on.We can design and manufacture the shafts according to your demand.
The parameters of the motor above are for your reference.We can design and manufacture according to your required like voltage, power,speed,torque and dimensions.
| Type | Torque | Speed | Power | Voltage | Current(A) | CW/CCW |
| (mN.m) | (r/min) | (w) | (v) | < | speed tolerance(r/min) | |
| 110ZYT01 | 784 | 1500 | 123 | 110 | 1.8 | 100 |
| 110ZYT02 | 784 | 1500 | 123 | 220 | 0.9 | 100 |
| 110ZYT03 | 637 | 3000 | 200 | 110 | 2.8 | 200 |
| 110ZYT04 | 637 | 3000 | 200 | 220 | 1.4 | 200 |
| 110ZYT05 | 637 | 3000 | 200 | 24 | 13 | 200 |
| 110ZYT51 | 1177 | 1500 | 185 | 110 | 2.5 | 100 |
| 110ZYT52 | 1177 | 1500 | 185 | 220 | 1.25 | 100 |
| 110ZYT53 | 980 | 3000 | 308 | 110 | 4 | 200 |
| 110ZYT54 | 980 | 3000 | 308 | 220 | 2 | 200 |
| 110ZYT55 | 980 | 3000 | 308 | 24 | 16.5 | 200 |
| Type | Torque | Speed | Power | Voltage | Current(A) | CW/CCW |
| (mN.m) | (r/min) | (w) | (v) | < | speed tolerance(r/min) | |
| 110ZYT101 | 1560 | 1500 | 245 | 110 | 3 | 100 |
| 110ZYT102 | 1560 | 1500 | 245 | 220 | 1.5 | 100 |
| 110ZYT103 | 1274 | 3000 | 400 | 110 | 4.8 | 200 |
| 110ZYT104 | 1274 | 3000 | 400 | 220 | 2.4 | 200 |
| 110ZYT105 | 1274 | 3000 | 400 | 24 | 22.5 | 200 |
| 110ZYT151 | 2390 | 1500 | 375 | 110 | 4.5 | 100 |
| 110ZYT152 | 2390 | 1500 | 375 | 220 | 2.3 | 100 |
| 110ZYT153 | 2230 | 3000 | 700 | 110 | 8.5 | 200 |
| 110ZYT154 | 2230 | 3000 | 700 | 220 | 4.2 | 200 |
| 110ZYT155 | 2230 | 3000 | 700 | 24 | 45 | 200 |
