1.2kw 24v 3000rpm Brushless DC Motor
Position Speed control motor
Features:
1. Motor type: BLDC motor
2 .Gearbox: Worm gearbox
3. Voltage: 24V
4. Speed: 1000rpm, 1500rpm 3000rpm
5. Torque: 3.8N.m
6. Shaft dia: 19mm
7. Direction: CW /CCW
8. Addition: Manual brake
9. Typical application: Electric vehicles, Industrial automation, boat propulsion, industry drive, transport robot Power tools, Medical equipment, Cleanning machine, HVAC systems
10. Customized service: Motor's performance parameter, Shaft type, Wires and connectors
- Information
- Video
- Downloads
1.2kw 24v 3000rpm Brushless DC motor
Higher Efficiency: Brushless motors achieve higher efficiency than brushed motors due to their design that eliminates the need for brushes, which reduces energy loss due to friction. This makes them ideal for applications where energy efficiency is critical.
Longer lifespan: Brushless motors have fewer moving parts, which results in less wear and tear, and thus a longer lifespan than brushed motors. This makes them ideal for applications where maintenance costs are a concern.
High torque density: Brushless motors can produce high torque at low speeds, which makes them ideal for applications that require high power and precise control.
Precise Control: Brushless motors provide precise control over speed, torque, and position, which makes them ideal for applications that require high accuracy and repeatability.
Low Noise: Brushless motors operate with lower noise levels than brushed motors, due to their design that eliminates the need for brushes and commutators.
Biote Brushless DC motor
Brushless DC motors are widely used for many industrial applications as they have many advantages:
•High efficiency and high torque in a small diameter
•Low starting voltage,low rotor intertial, low noise,long lifetime
•wide range of speed control and steady working state with less inaccuracy
•The size according Y2 motor to design. easy install
Widely used in automation equipment such as Copier ,printing machinery,Engraving machine,packing machine,grinting machine,robot,machine tool,Milling machine,Sewing machine,Engraving machine,Medical apparatus,ATM machine ect.
We also supply brushless dc motor with 12v 24v 48v. 72v.etc. if you need it. please contact us!
The brushless DC motor are accept custom. please contact us send the power. voltage. speed and so on.We can give best ieda
This type of brushless dc motor alsop have other frame size

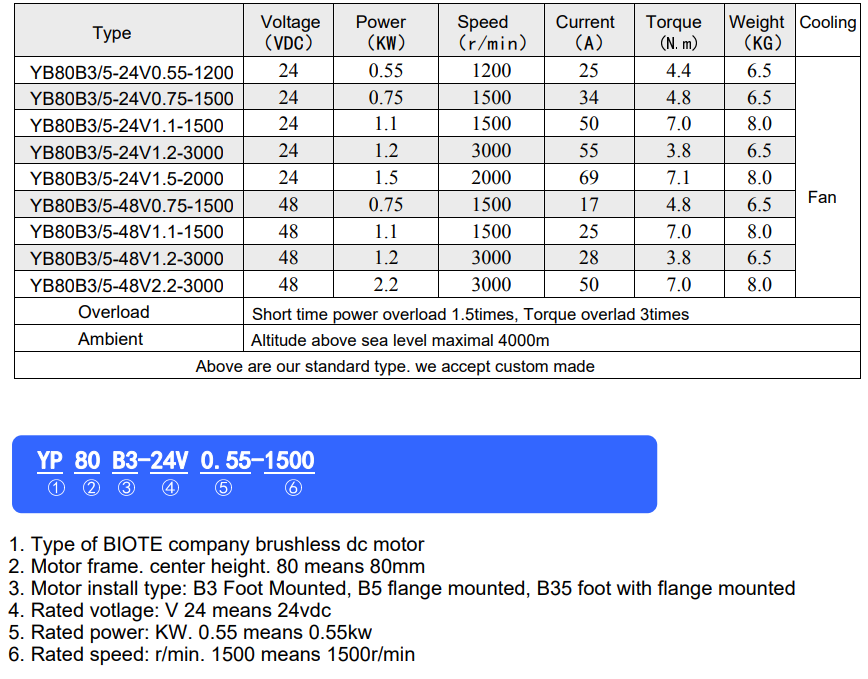

YB80 series Brushless DC motor
YB90 series Brushless DC motor
........
YB32 series Brushless DC motor
the power from 0.5kw- 15KW. .
Perfect ventilation cooling
Low power, electric-saving and money-saving
Reduce construction cost of the investment and enhance economic efficiency
We can also supply the brushless dc motor controller
This is brushless dc motor controller
