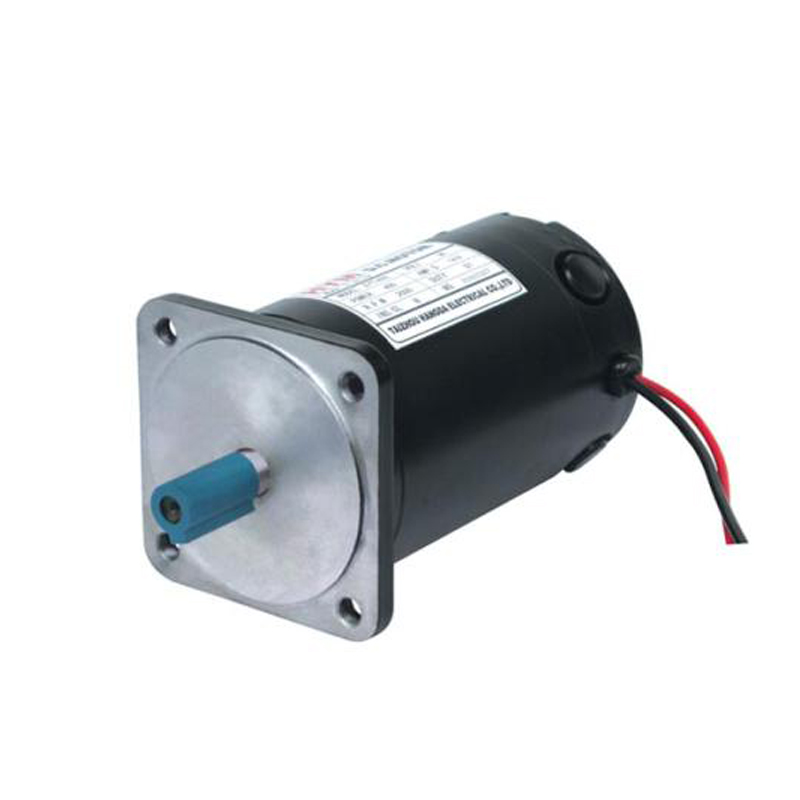

90ZYT 220v dc motor 50w 60w 100w 1500rpm brushed motor

Features:
1. Motor type: Brushed DC motor
2 .Gearbox: Worm gearbox, planetary reducer
3. Voltage: 220V
4. Speed:1500rpm
5. Type: 90ZYT
6. Shaft dia: 10mm
7. Diameter:90mm
8. Direction: CW /CCW
9. Typical application: Brushed motors are widely used in various industrial and commercial applications due to their simple design, low cost, and ease of maintenance. They are suitable for applications that require low to medium power output and low to medium speed operation.

  • Information
  • Video
  • Downloads

ZYT90 50W 1500RPM 220V DC

50W brushed motor is commonly used in various low-power industrial and commercial applications due to its simplicity and low cost. Some of the main applications of a 50W brushed motor include:

Power tools: 50W brushed motors are commonly used in various power tools such as drills, saws, and sanders. These motors provide sufficient power output for the tool to function effectively, and their low cost makes them an ideal solution for these applications.

Home appliances: 50W brushed motors are also used in various home appliances such as vacuum cleaners, blenders, and mixers. These motors provide the necessary power output for the appliance to function and are cost-effective compared to other motor types.

Automotive systems: 50W brushed motors are used in various automotive systems such as power windows, windshield wipers, and cooling fans. These motors provide the required power output to operate these systems effectively and are cost-effective compared to other motor types.

Robotics: 50W brushed motors are also used in various robotics applications due to their simplicity and low cost. These motors provide sufficient power output for the robot to function effectively, and their low cost makes them an ideal solution for these applications.

In summary, a 50W brushed motor is commonly used in various low-power industrial and commercial applications, including power tools, home appliances, automotive systems, and robotics. Its simplicity and low cost make it an ideal solution for these applications.

TypeTorqueSpeedPowerVoltageCurrent(A)CW/CCW
(mN.m)(r/min)(w)(v)<speed   tolerance(r/min)
90ZYT023231500502200.33100
90ZYT032943000921101.2200
90ZYT042943000922200.6200
90ZYT05294300092246.1200
90ZYT515101500801101.1100
90ZYT525101500802200.55100
90ZYT5348030001501102200
90ZYT5448030001502201200
90ZYT55510150080245100
90ZYT10179615001251101.6100
90ZYT10279615001252200.8100
90ZYT10373330002301102.8200
90ZYT10473330002302201.5200
90ZYT10573330002302413.5200
