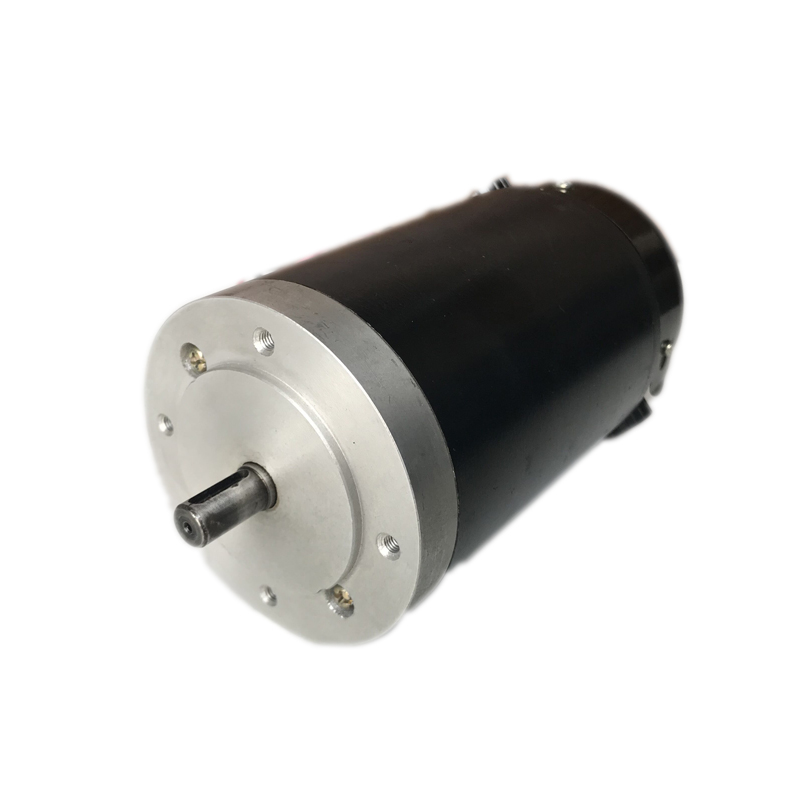

55ZYT High-Power Speed 70W 24V 7500RPM Brushed Motor
Features:
1. Motor type: Brushed DC motor
2 .Gearbox: Worm gearbox, planetary reducer
3. Voltage: 110V
4. Speed:7500rpm
5. Type: 55ZYT
6. Shaft dia: 9mm
7. Diameter:55mm
8. Direction: CW /CCW
9. Typical application: Brushed motors are widely used in various industrial and commercial applications due to their simple design, low cost, and ease of maintenance. They are suitable for applications that require low to medium power output and low to medium speed operation.
- Information
- Video
- Downloads
ZYT55 70W 7500RPM 24V DC
70W 24V 7500RPM brushed motor is an electric motor that delivers up to 70 watts of power at 24 volts and operates at a speed of 7500 revolutions per minute. It is commonly used in various industrial and commercial applications, including power tools, home appliances, and automotive systems.
The motor consists of a rotor, stator, commutator, windings, brushes, and brush holders. The rotor is the rotating part of the motor and is made up of a shaft, commutator, and a set of windings. The stator is the stationary part of the motor and is made up of a series of permanent magnets or electromagnets.
When electrical current is applied to the windings on the rotor, it creates a magnetic field that interacts with the magnetic field of the stator, causing the rotor to turn. The brushes, which are small pieces of carbon or graphite, conduct electrical current to the windings via the commutator, ensuring that the electrical current is delivered to the windings in the correct sequence to maintain the rotation of the rotor.
One of the main advantages of a 70W 24V 7500RPM brushed motor is its high power output and speed, making it suitable for various high-power and high-speed applications. However, they do require periodic maintenance or replacement of the brushes and commutator due to wear and tear.
In summary, a 70W 24V 7500RPM brushed motor is a high-power and high-speed motor used in various industrial and commercial applications. It consists of a rotor, stator, commutator, windings, brushes, and brush holders, and is an ideal solution for various high-power and high-speed applications.
| Type | Torque | Speed | Power | Voltage | Current(A) | CW/CCW |
| (mN.m) | (r/min) | (w) | (v) | < | speed tolerance(r/min) | |
| 55ZYT01 | 63.7 | 3000 | 20 | 24 | 1.5 | 200 |
| 55ZYT02 | 63.7 | 3000 | 20 | 27 | 1.3 | 200 |
| 55ZYT03 | 63.7 | 3000 | 20 | 48 | 0.7 | 200 |
| 55ZYT04 | 63.7 | 3000 | 20 | 110 | 0.34 | 200 |
| 55ZYT05 | 55.7 | 6000 | 35 | 24 | 2.5 | 300 |
| 55ZYT06 | 55.7 | 6000 | 35 | 27 | 2.2 | 300 |
| 55ZYT07 | 55.7 | 6000 | 35 | 48 | 1.3 | 300 |
| 55ZYT08 | 55.7 | 6000 | 35 | 110 | 0.54 | 300 |
| 55ZYT51 | 92.3 | 3000 | 29 | 24 | 2.1 | 200 |
| 55ZYT52 | 92.3 | 3000 | 29 | 27 | 1.8 | 200 |
| 55ZYT53 | 92.3 | 3000 | 29 | 48 | 1.1 | 200 |
| 55ZYT54 | 92.3 | 3000 | 29 | 110 | 0.46 | 200 |
| 55ZYT55 | 79.6 | 6000 | 50 | 24 | 3.45 | 300 |
| 55ZYT56 | 79.6 | 6000 | 50 | 27 | 3.1 | 300 |
| 55ZYT57 | 79.6 | 6000 | 50 | 48 | 1.74 | 300 |
| 55ZYT58 | 79.6 | 6000 | 50 | 110 | 0.74 | 300 |
| 55ZYT65 | 89.2 | 7500 | 70 | 110 | 1 | 400 |
