130ZYT 500W DC Motor 1500rpm 32Nm 110V-220V
Features:
1. Motor type: Brushed DC motor
2 .Gearbox: Worm gearbox, planetary reducer
3. Voltage: 110v 220v
4. Speed:1500rpm
5. Type: 130ZYT
6. Shaft dia: 19mm
7. Diameter:130mm
8. Direction: CW /CCW
9. Typical application: Brushed motors are widely used in various industrial and commercial applications due to their simple design, low cost, and ease of maintenance. They are suitable for applications that require low to medium power output and low to medium speed operation.The advantages of brushed DC motors can be summarized in one sentence: They offer simple construction, easy control, and cost-effectiveness.
- Information
- Video
- Downloads

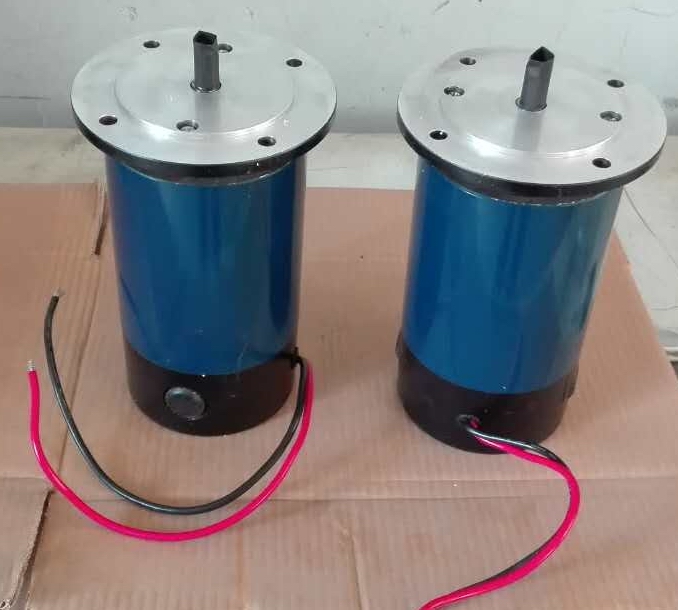

ZYT130 500W 1500RPM 110V 220V DC Motor
main applications of dc motor | |||
Industry | Content | Industry | Content |
Medical equipment | Hand-held surgical instruments | Aerospace Industry | Electric seat adjustment post |
Surgical robot | Flight recorders | ||
Micro-injection pump; Peristaltic pump | Autopilot | ||
Dialyzer | Air-conditioning system | ||
Automatic dosing system | Space Robot | ||
Radiation therapy equipment | |||
Diagnostic equipment and testing instruments | |||
Robot | Humanoid robot | Auto industry | Adjustable shock absorbers |
Service robots | Emission abatement system | ||
Teaching Robots | Electronic steering | ||
Electronic tachometer
| |||
Industrial Automation | Precision Positioning System | Communications Equipment | Antenna System |
Handling System | Copier / printer / plotter | ||
We make integrated encoder, gearbox, brake...etc
Please Send Inquiry or Question, and We will get you the Best and Most Cost Effective Solution/Proposal.
OPTIONS:
Size: 32mm 36mm 38mm 42mm 52mm 57mm 60mm 63mm 70mm 76mm 80mm 90mm 110mm
Rated voltage : 10v 12v 18v 24v 36v 48v upto 380vdc
Rated torque : upto 3Nm (calculated without gearbox)
Rated speed: upto 15000rpm
Rated power: upto 1000w
Protection class IP 40 50 54 56 66 67 Option
BELOW ARE ONLY TYPICAL MODELS, PLS CONTACT US FOR CUSTOMIZED MOTORS

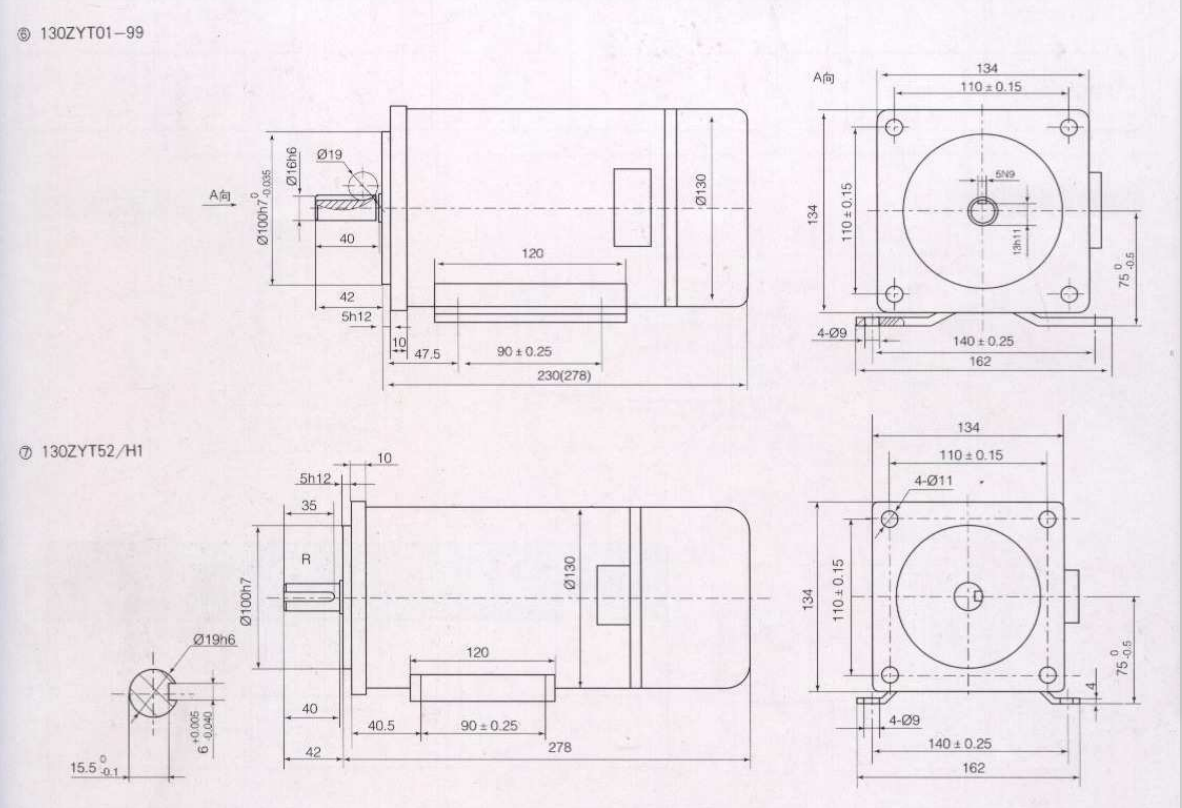

These are standard shafts of our company above. The diameter of the output shaft can be 6mm, 8mm, 10mm, 12mm, 14mm and so on.We can design and manufacture the shafts according to your demand.
The parameters of the motor above are for your reference.We can design and manufacture according to your required like voltage, power,speed,torque and dimensions.
| Type | Torque | Speed | Power | Voltage | Current(A) | CW/CCW |
| (mN.m) | (r/min) | (w) | (v) | < | speed tolerance(r/min) | |
| 130ZYT02 | 2548 | 1500 | 400 | 220 | 2.4 | 100 |
| 130ZYT03 | 2548 | 3000 | 800 | 110 | 9 | 200 |
| 130ZYT04 | 2548 | 3000 | 800 | 220 | 4.5 | 200 |
| 130ZYT51 | 3185 | 1500 | 500 | 110 | 5.8 | 100 |
| 130ZYT52 | 3185 | 1500 | 500 | 220 | 2.9 | 100 |
| 130ZYT53 | 3185 | 3000 | 1000 | 110 | 11 | 200 |
| 130ZYT54 | 3185 | 3000 | 1000 | 220 | 5.5 | 200 |
| 130ZYT101 | 3822 | 1500 | 600 | 110 | 7 | 100 |
| 130ZYT102 | 3822 | 1500 | 600 | 220 | 3.5 | 100 |
| 130ZYT103 | 3822 | 3000 | 1200 | 110 | 13 | 200 |
