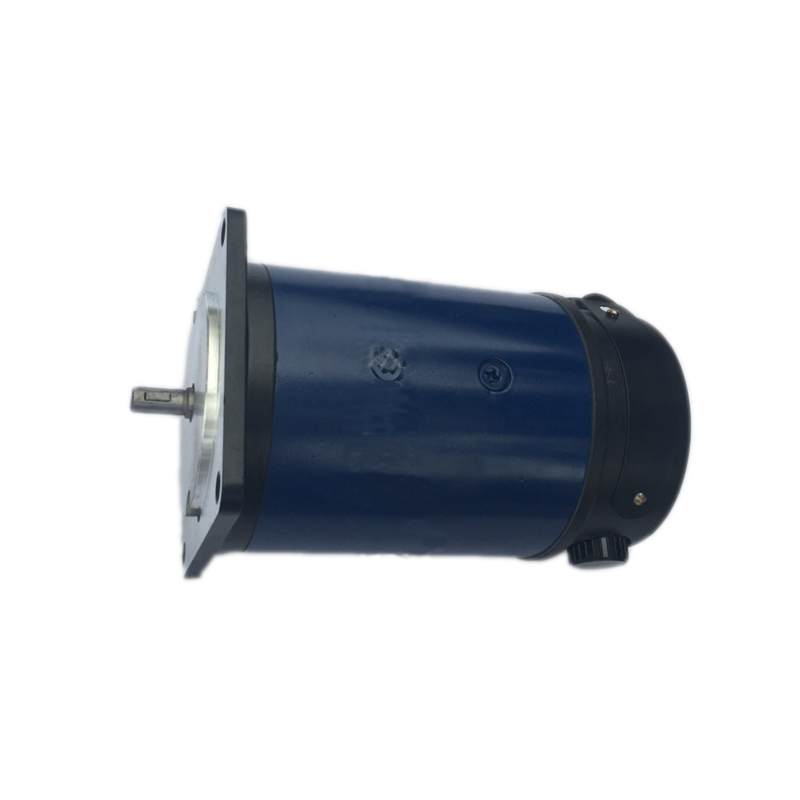

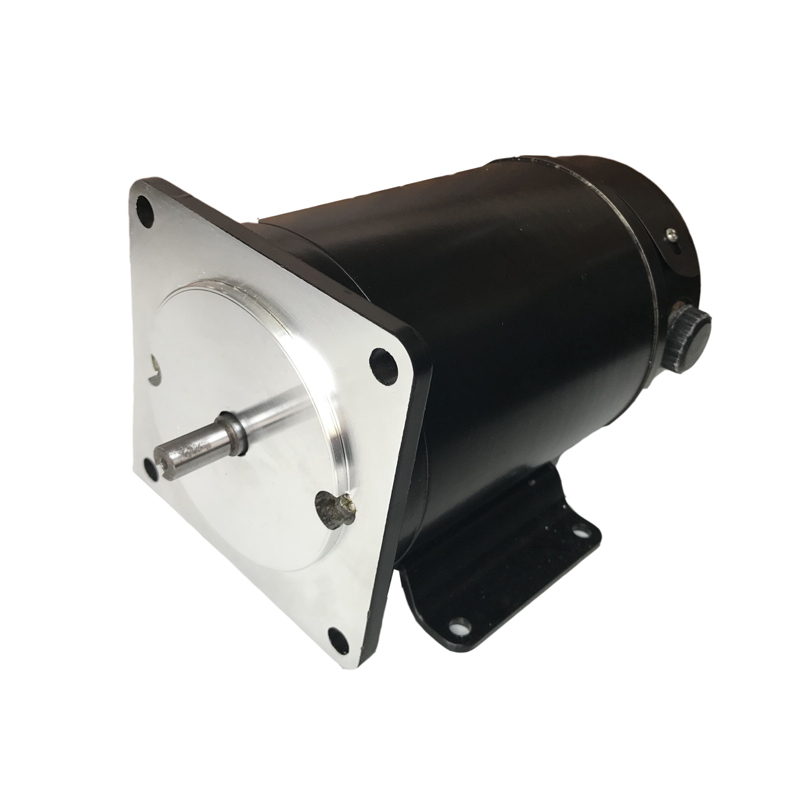

110ZYT 200W 3000rpm Customizable Brush Dc Motor
Features:
1. Motor type: Brushed DC motor
2 .Gearbox: Worm gearbox, planetary reducer
3. Voltage: 110v, 220v
4. Speed:3000rpm
5. Type: 110ZYT
6. Shaft dia: 12mm
7. Diameter:100mm
8. Direction: CW /CCW
9. Typical application: Brushed motors are widely used in various industrial and commercial applications due to their simple design, low cost, and ease of maintenance. They are suitable for applications that require low to medium power output and low to medium speed operation.
- Information
- Video
- Downloads
ZYT110 20W 3000RPM 110V 220V DC Motor
High Torque Permanent Magnet Brushed Dc Motor
Below are only typical models.
We make Customizable voltage, dimension, performance, shaft, mounting...etc
We make integrated encoder, gearbox, brake...etc
Please Send Inquiry or Question, and We will get you the Best and Most Cost Effective Solution/Proposal.
OPTIONS:
Size: 32mm 36mm 38mm 42mm 52mm 57mm 60mm 63mm 70mm 76mm 80mm 90mm 110mm
Rated voltage : 10v 12v 18v 24v 36v 48v upto 380vdc
Rated torque : upto 3Nm (calculated without gearbox)
Rated speed: upto 15000rpm
Rated power: upto 1000w
Protection class IP 40 50 54 56 66 67 Option
BELOW ARE ONLY TYPICAL MODELS, PLS CONTACT US FOR CUSTOMIZED MOTORS
These are standard shafts of our company above. The diameter of the output shaft can be 6mm, 8mm, 10mm, 12mm, 14mm and so on.We can design and manufacture the shafts according to your demand.
The parameters of the motor above are for your reference.We can design and manufacture according to your required like voltage, power,speed,torque and dimensions.
| Type | Torque | Speed | Power | Voltage | Current(A) | CW/CCW |
| (mN.m) | (r/min) | (w) | (v) | < | speed tolerance(r/min) | |
| 110ZYT01 | 784 | 1500 | 123 | 110 | 1.8 | 100 |
| 110ZYT02 | 784 | 1500 | 123 | 220 | 0.9 | 100 |
| 110ZYT03 | 637 | 3000 | 200 | 110 | 2.8 | 200 |
| 110ZYT04 | 637 | 3000 | 200 | 220 | 1.4 | 200 |
| 110ZYT05 | 637 | 3000 | 200 | 24 | 13 | 200 |
| 110ZYT51 | 1177 | 1500 | 185 | 110 | 2.5 | 100 |
| 110ZYT52 | 1177 | 1500 | 185 | 220 | 1.25 | 100 |
| 110ZYT53 | 980 | 3000 | 308 | 110 | 4 | 200 |
| 110ZYT54 | 980 | 3000 | 308 | 220 | 2 | 200 |
| 110ZYT55 | 980 | 3000 | 308 | 24 | 16.5 | 200 |
| Type | Torque | Speed | Power | Voltage | Current(A) | CW/CCW |
| (mN.m) | (r/min) | (w) | (v) | < | speed tolerance(r/min) | |
| 110ZYT101 | 1560 | 1500 | 245 | 110 | 3 | 100 |
| 110ZYT102 | 1560 | 1500 | 245 | 220 | 1.5 | 100 |
| 110ZYT103 | 1274 | 3000 | 400 | 110 | 4.8 | 200 |
| 110ZYT104 | 1274 | 3000 | 400 | 220 | 2.4 | 200 |
| 110ZYT105 | 1274 | 3000 | 400 | 24 | 22.5 | 200 |
| 110ZYT151 | 2390 | 1500 | 375 | 110 | 4.5 | 100 |
| 110ZYT152 | 2390 | 1500 | 375 | 220 | 2.3 | 100 |
| 110ZYT153 | 2230 | 3000 | 700 | 110 | 8.5 | 200 |
| 110ZYT154 | 2230 | 3000 | 700 | 220 | 4.2 | 200 |
| 110ZYT155 | 2230 | 3000 | 700 | 24 | 45 | 200 |
