Golf cart, Scooter and Electric wheelchair

Our products are known for their reliability, stability, and safety, particularly for their overload performance and ideal electromagnetic compatibility. Our company was the first to develop explosion-proof AC variable frequency traction motors for industrial vehicles, which have received multiple patents. Our motors are widely used in the industrial vehicle and electric vehicle industries

This traction motors are suitable for various electric forklifts, tractors, transport vehicles, golf carts, sightseeing tour vehicles, and electric cars.

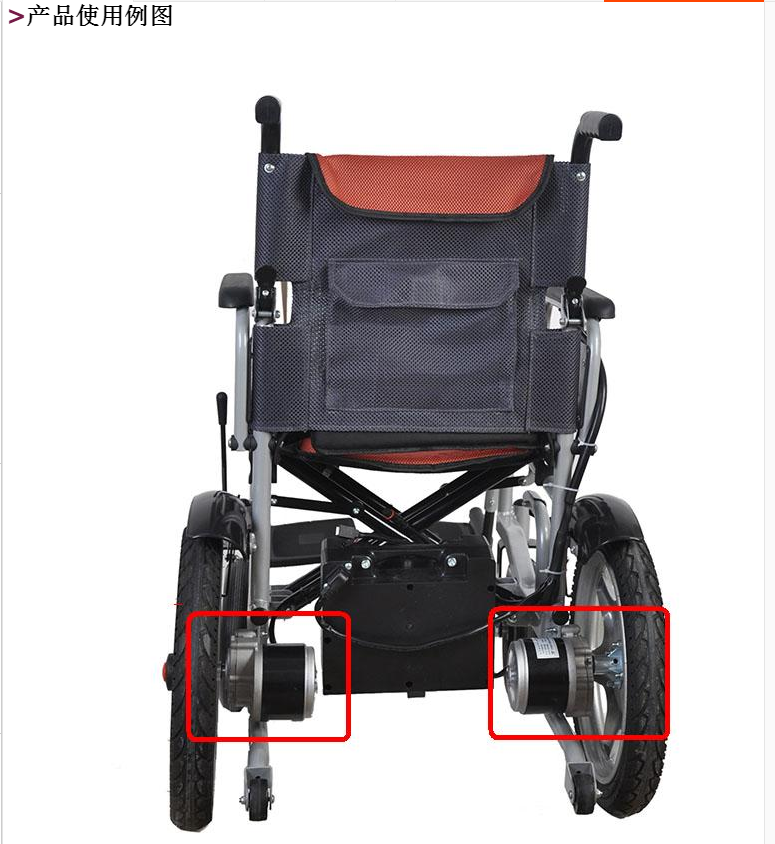

This type motor is widely used for wheelchair, lawn mower, and other mobility vehicles. For electric wheelchairs,The separate motor does not contain other accessories.  We also provide accessories together, like  wheels and joystick , if need, pls contact us freely.

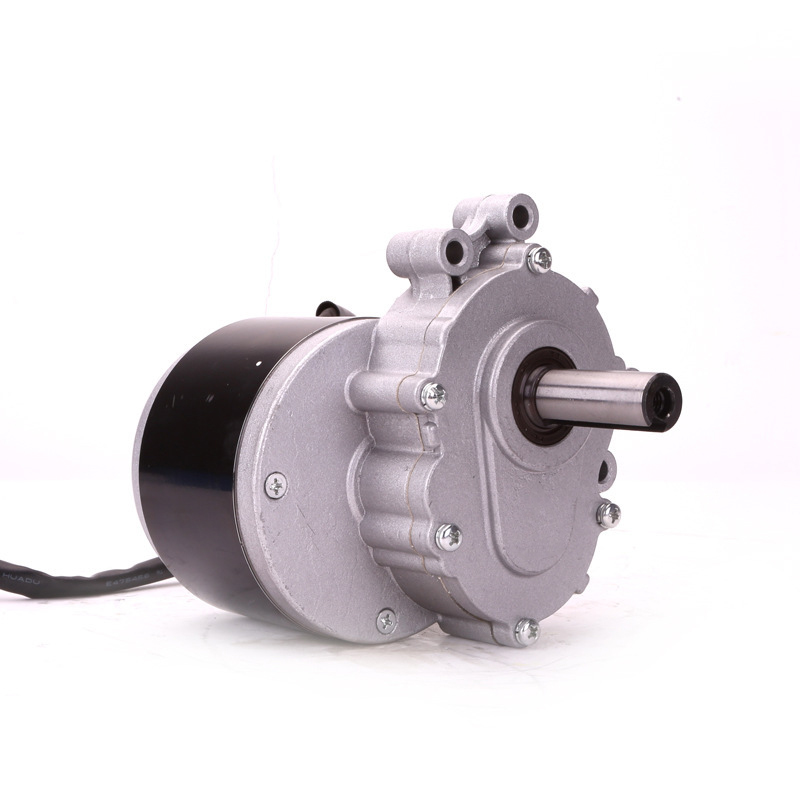

MY1016Z Wheelchair Motor

Voltage

24V

Power

250W

Motor speed

2400 / 3700 RPM

No-load speed

75rpm/ 120 rpm/160rpm

Output speed

75/120/160 rpm

Rated torque

≥45mm

No-load current

≤ 4.0 A

Rated current

≤13.7 / 14.8 A

Working hours

S2 : 60

Insulation class

E

Reduction ratio

23.2 : 1

Motor efficiency

≥ 70 / 76 %

Load capacity

100kg/pcs

Application

wheelchair

1016 (2).png21736486086_813387452.jpgMY1016Z2 (6).jpg

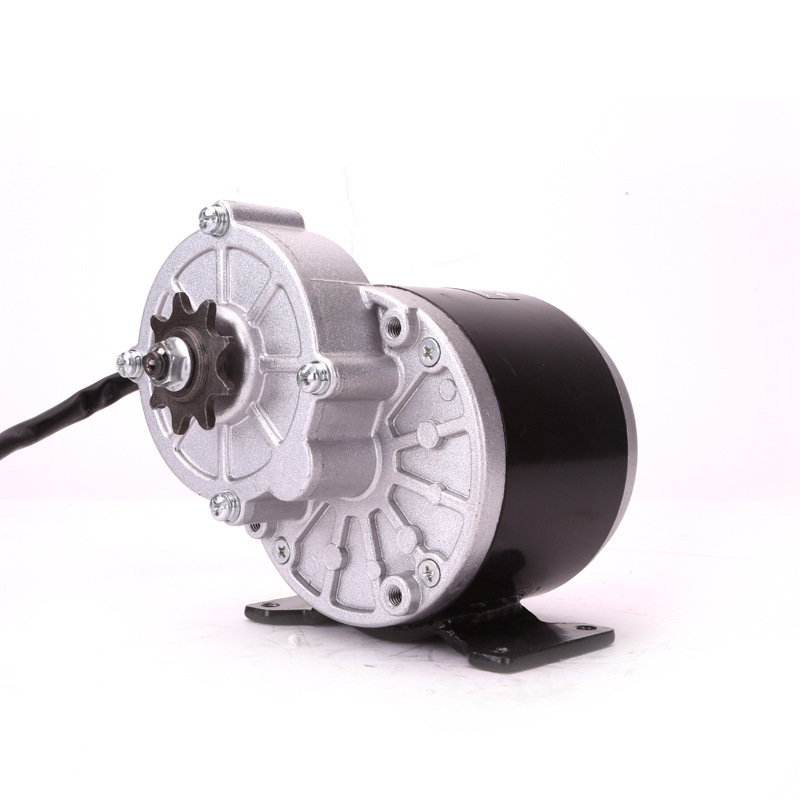

  • Scooter Motor: MY1016 China supplier customized new designed Electrical Ebike Set Kit 12V 24V 300W Brush DC Motor for Golf Cart and Dirt Bike, good quality. all bicycle kits


  • Golf Trolley Motor: The motor is a permanent magnet DC motor with low running noise, low vibration and long service life. It is mainly used for ordinary golf carts and remote-controlled golf carts.



  • Robotics and Automation Motor:Boost productivity and precision with our cutting-edge robotics and automation motors. Designed for high torque and precise control, our motors optimize industrial processes. Experience seamless integration and unlock new levels of efficiency with our advanced technology. Perfect for manufacturing, logistics, and more.


  • Treadmill: They provide the necessary power to drive the running belt, allowing users to walk, jog, or run indoors. The motor's speed and torque control enable adjustable workout intensities


  • Medical equipment: Brushed DC motors are chosen for their reliability, precise control, and cost-effectiveness, making them a suitable choice for a wide range of medical applications.


  • Lifting Jack Motor: Lifting jack motors are chosen for their ability to deliver high torque, precise control, and reliable performance, brushed dc motor making them suitable for a wide range of lifting and positioning tasks.


  • Mower motor: Mower motors provide the necessary power and performance, brushed dc motor high torque and small size for homeowners and professional landscapers alike.
