What is the IP69K rating
The IP69K protection rating is typically suitable for applications that require frequent cleaning and rinsing, such as brewing systems, medical systems, car wash facilities, and food and beverage factories. However, it is not suitable for situations where the equipment is completely submerged in water.
IP68 and IP69K belong to the same series of IP protection ratings, but they represent completely different concepts, as IP69K is a later derivative rating.
Let's first look at the differences between IP69K and IP68:
IP69K Protection Rating:
It withstands the high-temperature high-pressure water jetting test defined in the EN 60529 and DINQ 40050-9 standards. It can provide a maximum water pressure of 100 bar (1450 psi) and a temperature of 80°C for protection.
The test standard applies pressure directly to the sensor at a 30-degree increment (0 degrees, 30 degrees, 60 degrees, and 90 degrees), continuously for 30 seconds at each angle, totaling 120 seconds (2 minutes), to ensure that no water penetration occurs.
 |  |  |  |

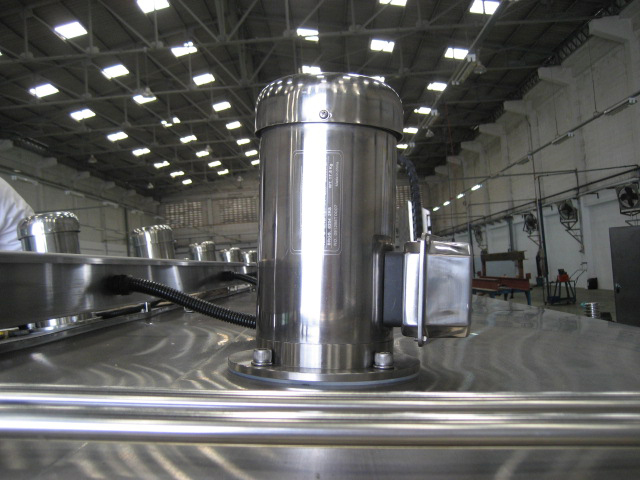

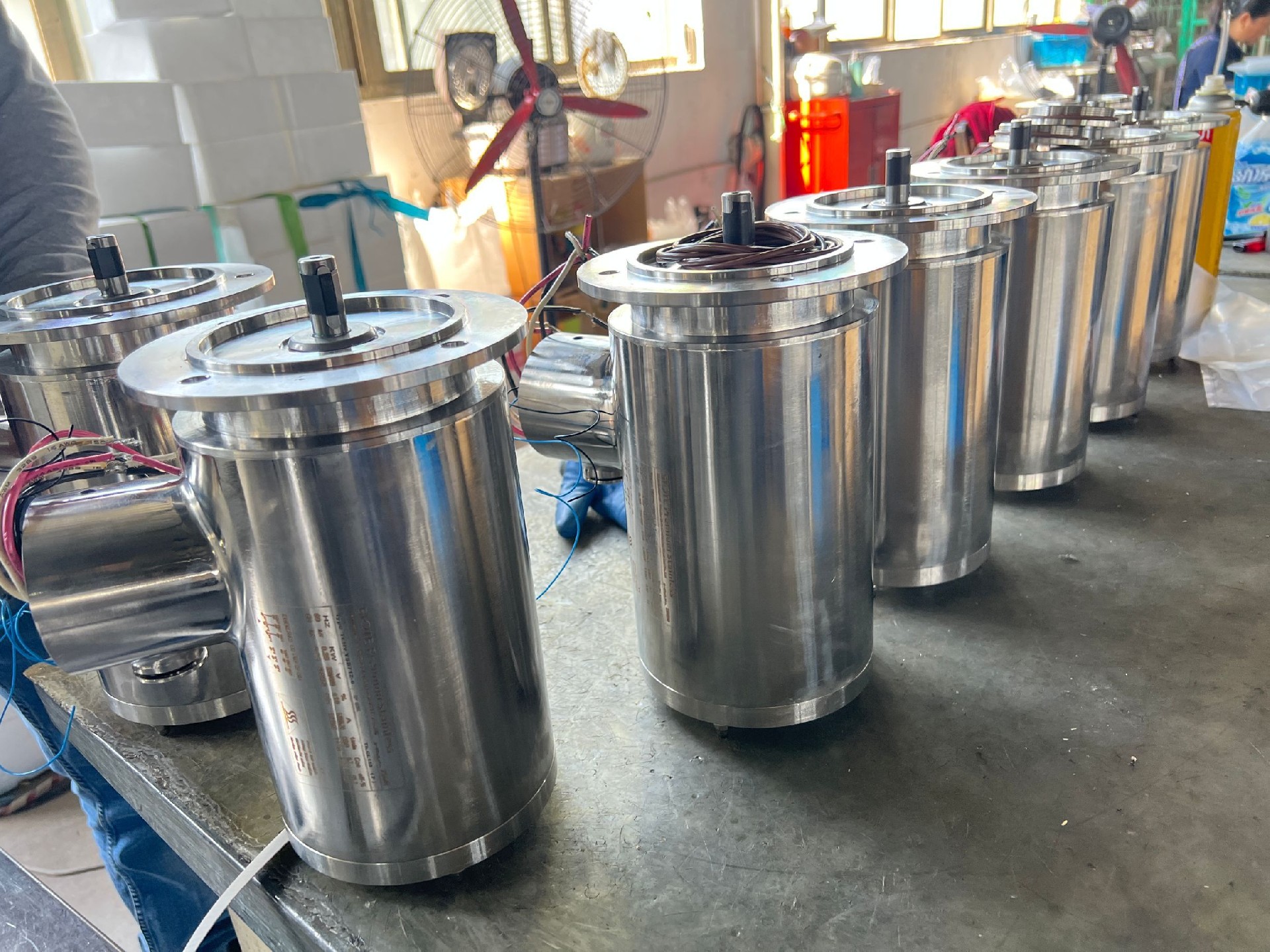

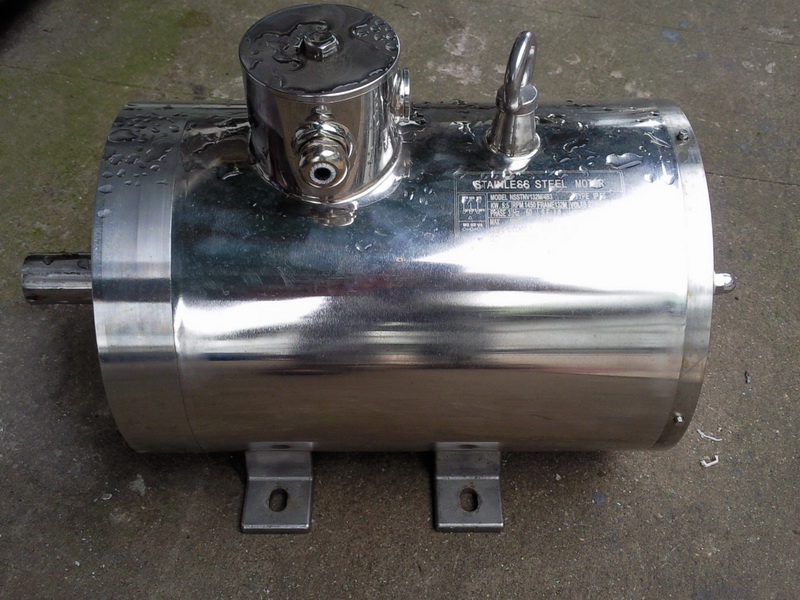

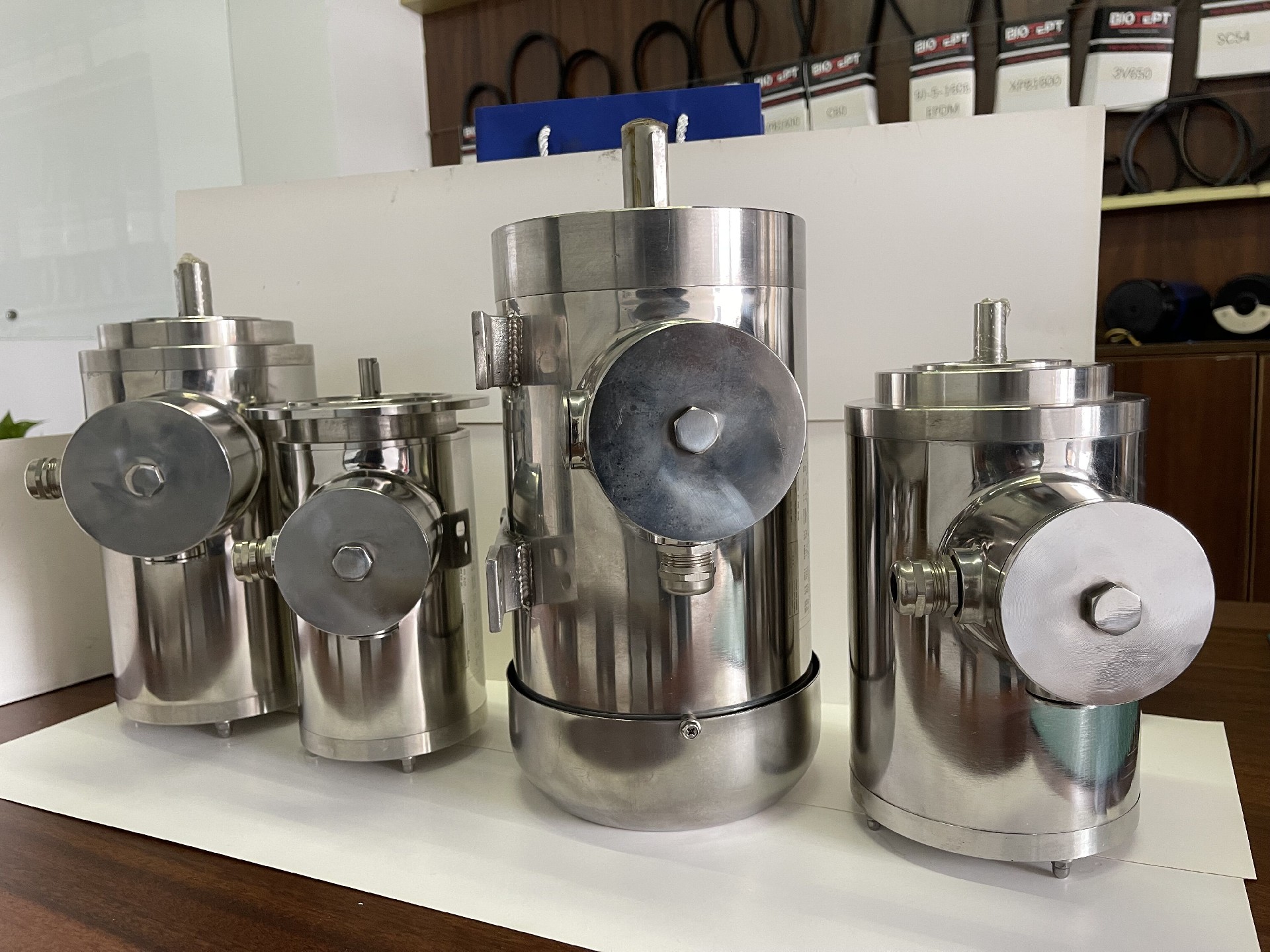

IP69K Stainless Steel Washdown Electric Motor
IP69K stainless steel motors are designed to meet the highest level of protection against dust, water, and other environmental factors. The IP69K rating signifies that these motors provide exceptional resistance to high-pressure and high-temperature water ingress, making them ideal for applications that require frequent cleaning and exposure to harsh conditions.
The "IP" in IP69K stands for "Ingress Protection," and the "69K" indicates the specific level of protection. The IP69K rating is the most stringent level of protection in the IP classification system.
Stainless steel construction is a key feature of these motors. Stainless steel offers excellent corrosion resistance, making these motors suitable for applications in industries such as food and beverage, pharmaceuticals, and chemical processing, where cleanliness and hygiene are crucial.
The IP69K stainless steel motors are designed to withstand rigorous cleaning processes, including high-pressure jetting with water or cleaning agents. They can withstand water pressures up to 100 bar (1450 psi) and temperatures up to 80°C, ensuring reliable performance and longevity even in demanding environments.
These motors undergo thorough testing according to the EN 60529 and DINQ 40050-9 standards. The testing involves subjecting the motors to high-pressure water jets at various angles and durations to ensure that no water penetration occurs.
Overall, IP69K stainless steel motors provide robust protection against water ingress and corrosion, making them an excellent choice for applications that demand high levels of cleanliness, reliability, and durability in challenging environments.
Why Use IP69K Motor?
High Reduction Ratio:
IP69K stainless steel motors are widely used in various industries due to their unique design, energy efficiency, and numerous advantages.
Applications:

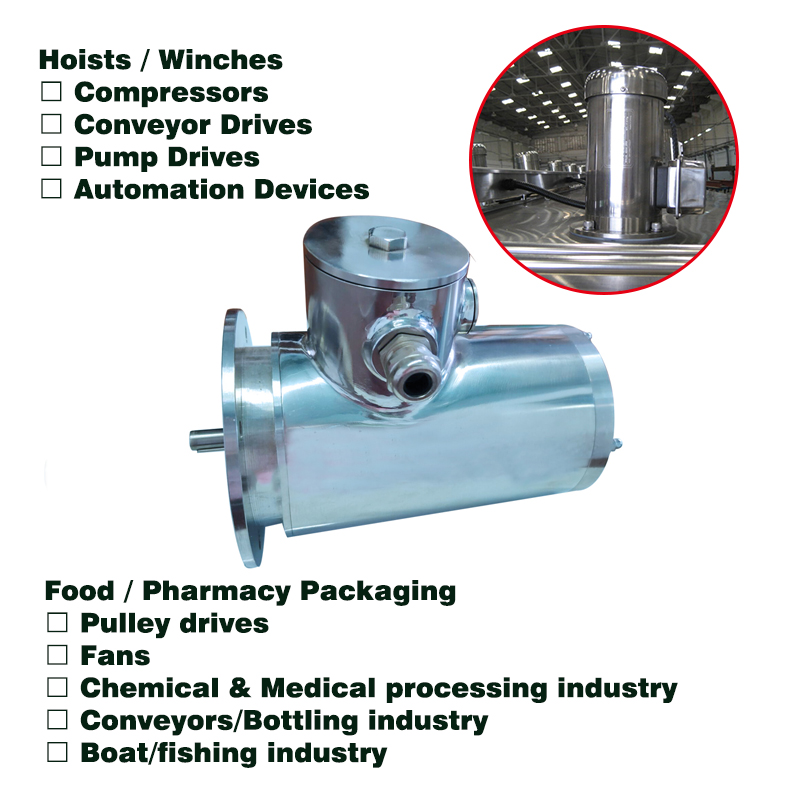

IP69K stainless steel motors find extensive application in industries that require stringent cleanliness standards and exposure to harsh environments. These include food and beverage processing, pharmaceutical manufacturing, chemical processing, marine and offshore operations, and agricultural settings. These motors are suitable for use in pumps, conveyors, mixers, agitators, and other equipment that require frequent cleaning and resistance to water ingress.
Design:

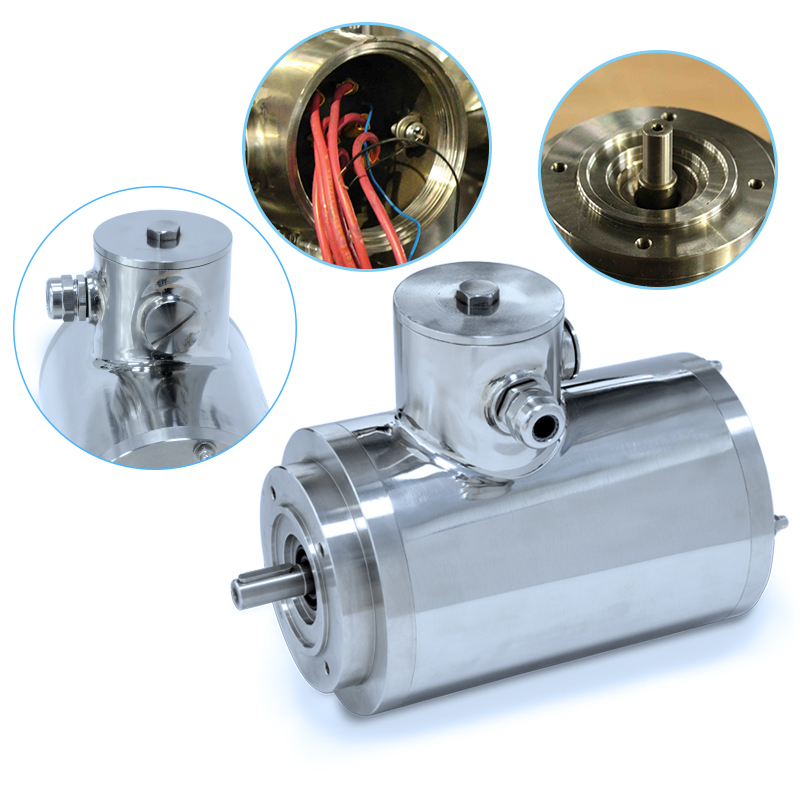

IP69K stainless steel motors are specifically designed to withstand rigorous cleaning processes and resist corrosion. They feature a robust and compact design, with housings made from high-quality stainless steel materials that offer excellent resistance to rust, chemicals, and harsh cleaning agents. The motors are sealed to prevent water and dust ingress, and their construction ensures easy cleaning and maintenance.
Energy Efficiency:

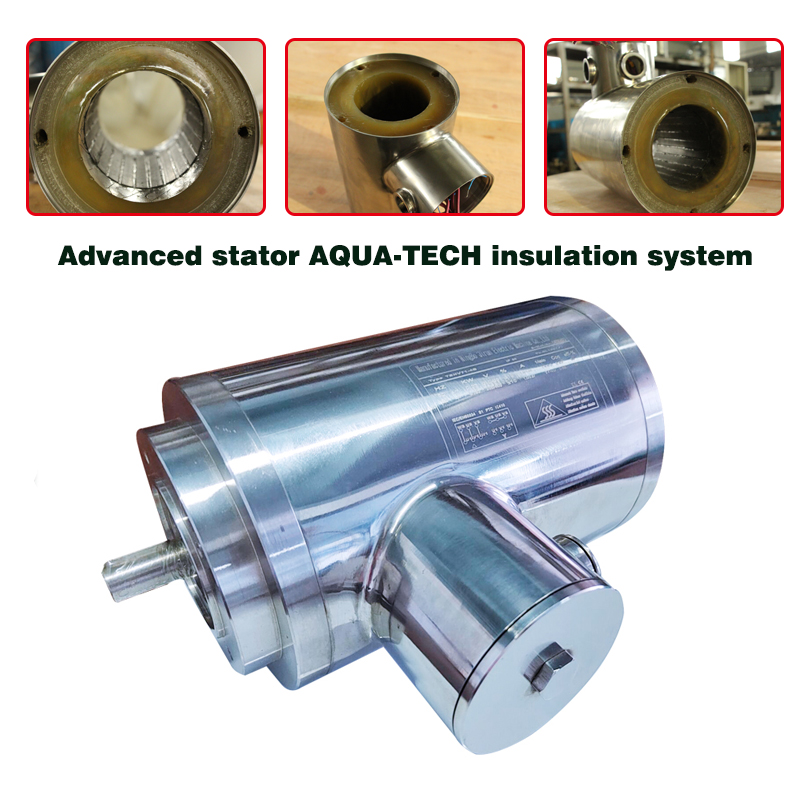

IP69K stainless steel motors are designed with energy efficiency in mind. They incorporate advanced motor technologies, such as high-quality insulation materials, precision engineering, and optimized windings. These features reduce energy losses, improve motor efficiency, and contribute to cost savings. Additionally, these motors often come with variable frequency drive (VFD) compatibility, allowing for precise control and further energy optimization.
Advantages:
Superior Protection: IP69K stainless steel motors provide the highest level of protection against water ingress, dust, and other contaminants. They can withstand high-pressure and high-temperature water jets, ensuring reliable operation even in demanding cleaning processes.
Corrosion Resistance: The stainless steel construction of these motors offers excellent resistance to corrosion, making them ideal for applications in corrosive environments. They can withstand exposure to chemicals, moisture, and aggressive cleaning agents without degradation.
Hygienic Design: IP69K stainless steel motors comply with stringent hygiene standards required in industries such as food and beverage processing. Their smooth surfaces, absence of crevices, and easy-to-clean design prevent the accumulation of dirt, bacteria, and other contaminants, ensuring product safety and integrity.
Durability and Longevity: These motors are built to last. Their rugged construction, combined with the corrosion-resistant properties of stainless steel, ensures reliable performance and a long service life. This reduces maintenance requirements and downtime, contributing to overall operational efficiency.

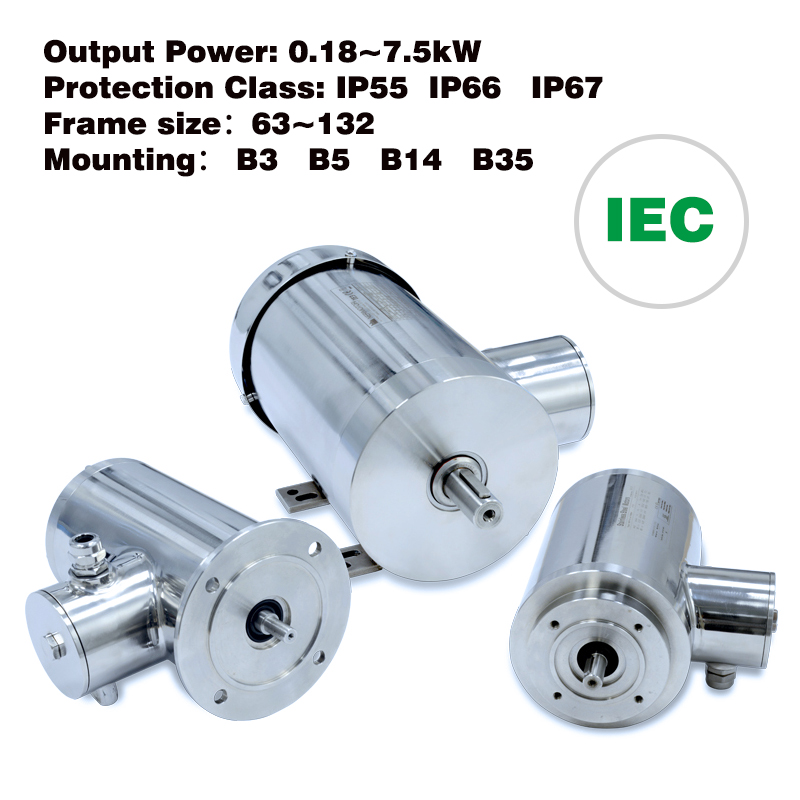

Versatility: IP69K stainless steel motors are available in various sizes, power ratings, and mounting options, providing flexibility for different application requirements. They can be customized to meet specific needs, ensuring optimal performance in a wide range of industries and applications.
In summary, IP69K stainless steel motors are designed for demanding environments that require cleanliness, durability, and resistance to water ingress. Their energy efficiency, corrosion resistance, and hygienic design make them a reliable choice for industries where reliability and compliance with strict standards are paramount.
